CBP70 柵欄式接線端子台
柵欄式接線端子台(CBP70系列)，PCB端子台，10A 300VAC，使用線徑22~12AWG，腳距為7.62mm pitch，電極P數為2P~32P，螺絲規格為M3鐵鍍鎳，可加上蓋，台灣生產製造。
- 產品型號: CBP70
- 產品目錄: 柵欄式接線端子台
產品特色
產品規格
| Product Type | Barrier Strip |
| Model Number | CBP70 |
| Rating | 10A 300VAC |
| Terminal | Brass, 0.8t, Tin Plated |
| Product Materials | Plastic NYLON 66, Black (UL 94V-0) |
| Screw | Steel, M3, Nickel Plated |
| Working Temperature | -40˚C to +105˚C |
| Insulation withstand Voltage | AC2000V at 1 min |
| Insulation resistance | 500MΩ or more at DC 500V |
| Wire Range | 22~12 AWG |
| Max. Torque Value | 10Kg/cm |
| Number of Poles | 2P~32P |
| Pitch | 7.62mm |
| Cover Available | |
| Place of Origin | Taiwan |
CBP70 系列外觀尺寸說明
CBP70-01

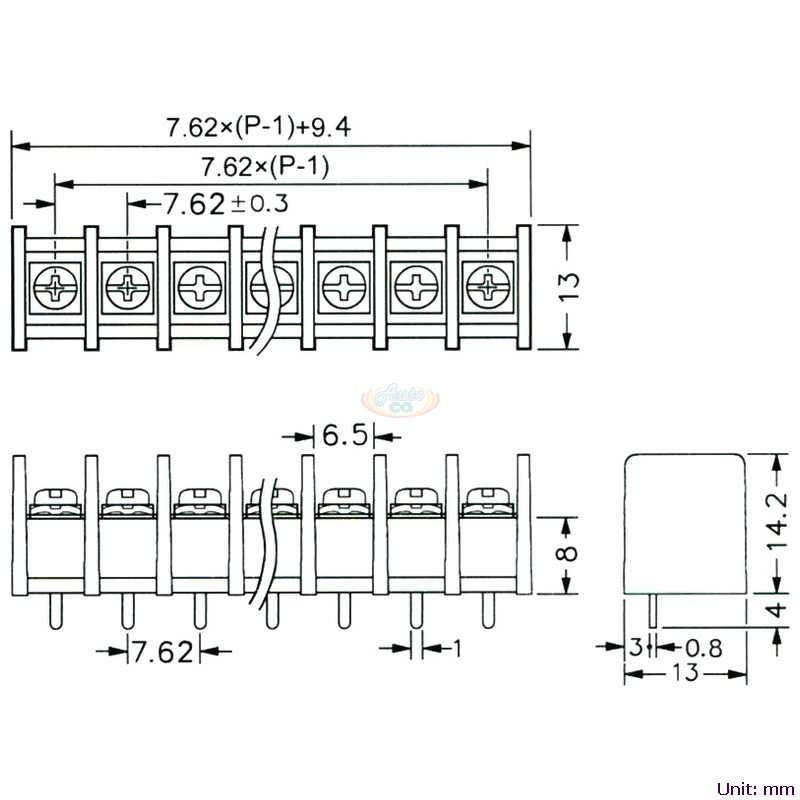

CBP70-02
CBP70-03
CBP70-04A
CBP70-04B
CBP70-05
CBP70-06
CBP70-07
