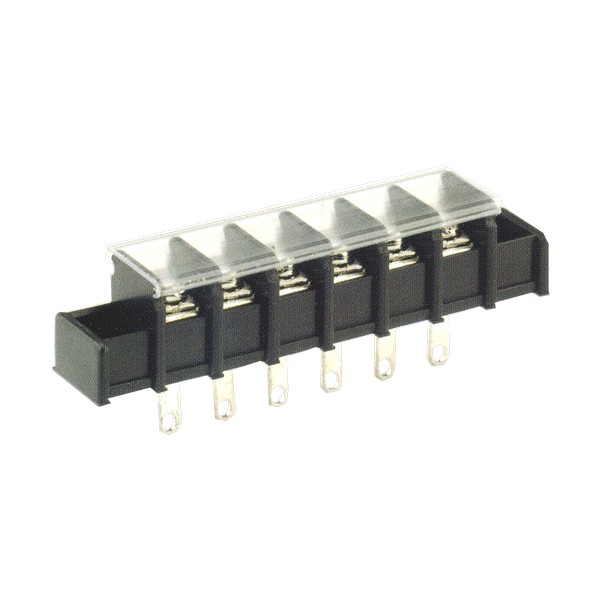

CBP40 柵欄式接線端子台
柵欄式接線端子台(CBP40系列)，PCB端子台，20A 300VAC，使用線徑22~12AWG，腳距為10mm pitch，電極P數為2P~30P，螺絲規格為M3.5鐵鍍鎳，可加上蓋，台灣生產製造。
- 產品型號: CBP40
- 產品目錄: 柵欄式接線端子台
產品特色
產品規格
| Product Type | Barrier Strip |
| Model Number | CBP40 |
| Rating | 20A 300VAC |
| Terminal | Brass, 0.8t, Tin Plated |
| Product Materials | Plastic NYLON 66, Black (UL 94V-0) |
| Screw | Steel, M3.5, Nickel Plated |
| Working Temperature | -40˚C to +105˚C |
| Insulation withstand Voltage | AC2000V at 1 min |
| Insulation resistance | 500MΩ or more at DC 500V |
| Wire Range | 22~12 AWG |
| Max. Torque Value | 12Kg/cm |
| Number of Poles | 2P~30P |
| Pitch | 10mm |
| Cover Available | |
| Place of Origin | Taiwan |
CBP40 系列外觀尺寸說明
CBP40-01
CBP40-02
CBP40-03
CBP40-04
CBP40-05
CBP40-06
CBP40-07
CBP40-08
