微動開關系列

Micro Switches Series
微動開關 1307
微動開關 1308
微動開關 1701
微動開關 1702
微動開關 1703
微動開關 1704
1307
1308
1701
1702
1703
1704

微動開關 Micro Switches Series

微動開關系列，1307、1308、1701、1702、1703、1704

  • Momentary contacts.
  • Temperature range +5ºF to +175ºF (-15ºC to +80ºC).

產品特色

  • Wide choice of heads and actuators.
  • Momentary contacts.
  • Completely sealed constructure.
  • Temperature range +5ºF to +175ºF (-15ºC to +80ºC).
  • Soldering terminal or fast terminal.

規格說明

Rating

  • 15A 125 or 250V AC
  • 1/8 HP 125V AC
  • 1/4 HP 250V AC
  • 1/2 A 125V DC
  • 1/4 A 250V DC

Operating speed

  • 0.01mm to 1m/sec

Operating frequency

  • Mechanically: 240 operations/min.
  • Electrically: 20 operations/min.

Contact resistance

  • 15MΩ max.(initial)

Insulation resistance

  • 100MΩ min. (at 500V DC)

Dielectric strength

  • 1,000VAC, 50/60Hz for 1 minute between non-continuous terminals
  • 2,000VAC, 50/60Hz for 1 minute between current-carry part and ground

Vibration

  • Malfunction durability: 10 to 55Hz 1.5mm double amplitude

Shock

  • Mechanical durability: Approox. 1,000m/ sec² (approx.100G's)
  • Malfunction durability: Approx. 300m/ sec² (approx.30G's)

Ambient operating temperature

  • General purpose type: -25˚C to +80˚C
  • Sealed type: -15˚C to +80˚C

Humidity

  • General purpose type: 85% RH max
  • Sealed type: 95% RH max

Service life

  • Mechanically: 20,000,000 operations min
  • Electrically: 500,000 operations min.

Action Feature related terms

微動開關 動作說明圖
  • OF: Operating Force
  • RF: Releasing Force
  • TF: Total Force
  • FP: Free Position
  • OP: Operating Position
  • RP: Releasing Position
  • TTP: Total Travel Position
  • PT: Pretravel
  • OT: Overtravel
  • MD: Movement Differential
  • TT: Total Travel

Product Series

CEA-1307
1307
CEA-1307 尺寸圖
CEA-1308
1308
CEA-1308 尺寸圖
CEA-1701
1701
CEA-1701 尺寸圖
CEA-1702
1702

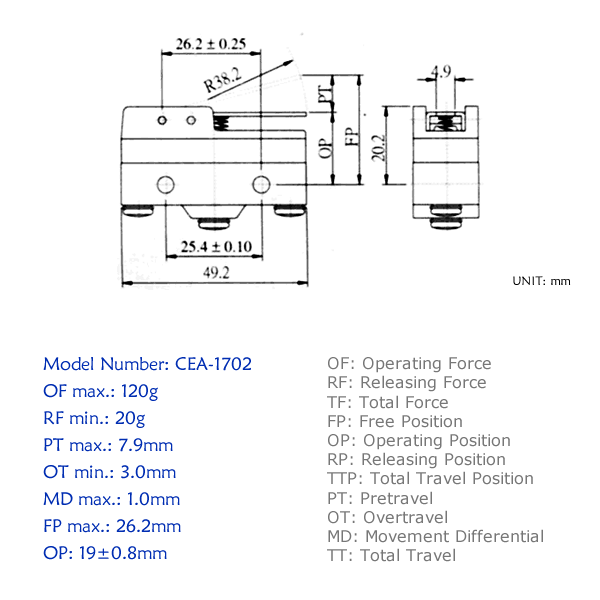

CEA-1702 尺寸圖
CEA-1703
1703
CEA-1703 尺寸圖
CEA-1704
1704
CEA-1704 尺寸圖
Item Type Micro Switches
Operating speed 0.01mm to 1m/sec
Contact resistance 15MΩ max.(initial)
Vibration Malfunction durability: 10 to 55Hz 1.5mm double amplitude
