CBP50 後擋板柵欄式端子台


後擋板柵欄式接線端子台(CBP50系列),PCB端子台,15A 300VAC,使用線徑22~12AWG,腳距為11mm pitch,電極P數為2P~32P,螺絲規格為M4鐵鍍鎳,接線簡單,台灣生產製造。

  • Rating: 15A 300VAC
  • Pitch: 11mm
  • Number of Poles: 2P~32P


產品特色


  • 台灣生產製造

產品規格


Product Type Barrier Strip
Barrier Style Single Row, Tri-Barrier
Model Number CBP50
Rating 15A 300VAC
Terminal Brass, 0.8t, Tin Plated
Product Materials Plastic NYLON 66, Black (UL 94V-0)
Screw Steel, M4, Nickel Plated
Working Temperature -40˚C to +105˚C
Insulation withstand Voltage AC2000V at 1 min
Insulation resistance 500MΩ or more at DC 500V
Wire Range 22~12 AWG
Max. Torque Value 18Kg/cm
Number of Poles 2P~32P
Pitch 11mm
Place of Origin Taiwan

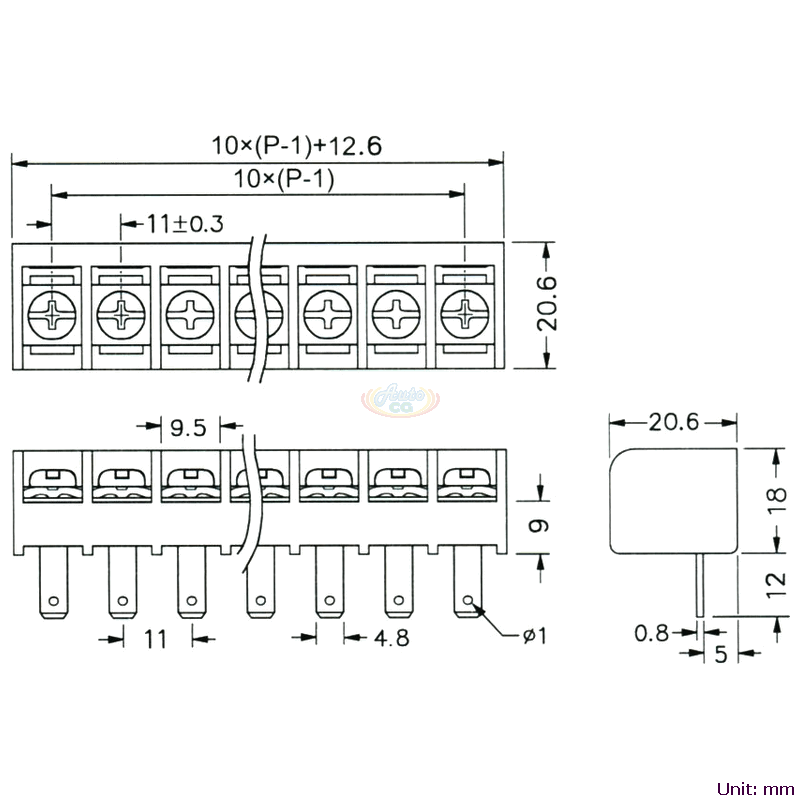

CBP50 系列外觀尺寸說明


CBP50-01
CBP50-02
CBP50-03
CBP50-04
CBP50-05

產品型錄下載


Please click an image thumbnail to view web catalog.
