CBP1-381 Series PCB Terminal Blocks

CBP1-381 Series Pluggable Terminal Blocks, 3.81mm pitch, 10A 300VAC, Accepts wire range 26~16 AWG, 2- to 16-Pole Euro-Style PCB Terminal Blocks.

  • Rating: 10A 300VAC
  • Pitch: 3.81mm
  • Poles: 2P~16P
Model Number: CBP1-381 Category: Pluggable Terminal Blocks
Tags: Pluggable Terminal Blocks
Product Description
  1. Model Number: CBP1-381
  2. Rating: 10A 300VAC
  3. Body Material: Polyamide 66, Green
  4. Contact: Phosphor Bronze, 0.3t, Nickel Plated
  5. Screw: M2, Steel, Zine Plated
  6. Cage clamp: Brass, 0.7t, Nickel Plated
  7. Solder Pin: 0.8mm Brass, Tin Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC 500V
  11. Wire Range: 26~16 AWG
  12. Screw Torque Value: 3kg/cm
  13. Poles: 2P~16P
  14. Pitch: 3.81mm
  15. Place of Origin: Taiwan
Dimensional Drawing

CBP1-381K Series Pluggable Terminal Blocks
CBP1-381K
CBP1-381K Series Pluggable Terminal Blocks Dimensional
CBP1-381R Series Pluggable Terminal Blocks
CBP1-381R
CBP1-381R Series Pluggable Terminal Blocks Dimensional
CBP1-381V Series Pluggable Terminal Blocks
CBP1-381V
CBP1-381V Series Pluggable Terminal Blocks Dimensional

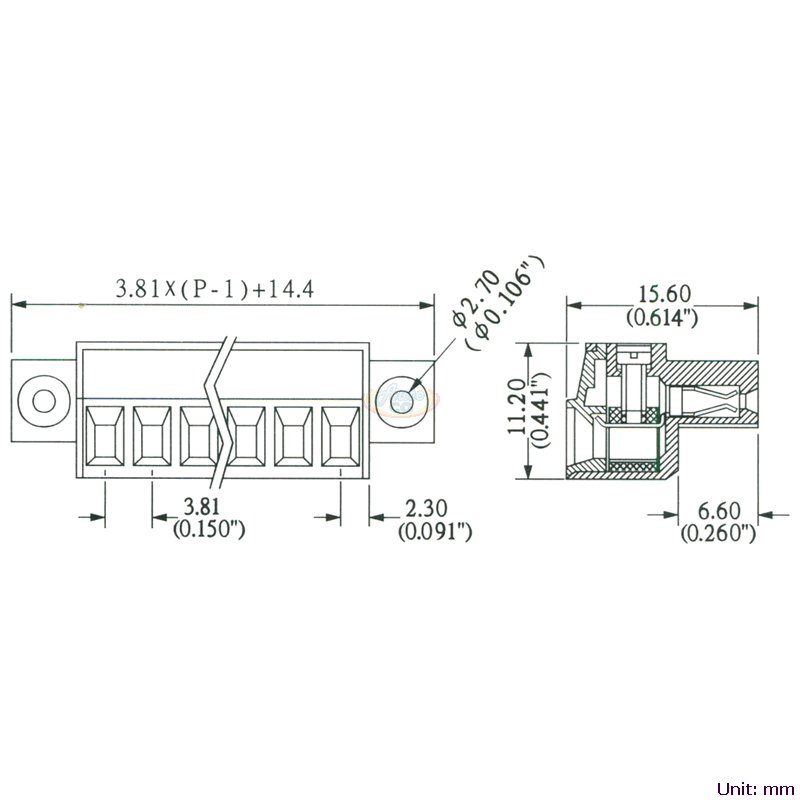

CBP1-381AK Series Pluggable Terminal Blocks
CBP1-381AK
CBP1-381AK Series Pluggable Terminal Blocks Dimensional
CBP1-381AR Series Pluggable Terminal Blocks
CBP1-381AR
CBP1-381AR Series Pluggable Terminal Blocks Dimensional
CBP1-381AV Series Pluggable Terminal Blocks
CBP1-381AV
CBP1-381AV Series Pluggable Terminal Blocks Dimensional
Catalog PDF Download Service

Catalog PDF Download Service

Please click an image thumbnail to view web catalog.

CBP1-381 Series Series Pluggable Terminal Blocks
