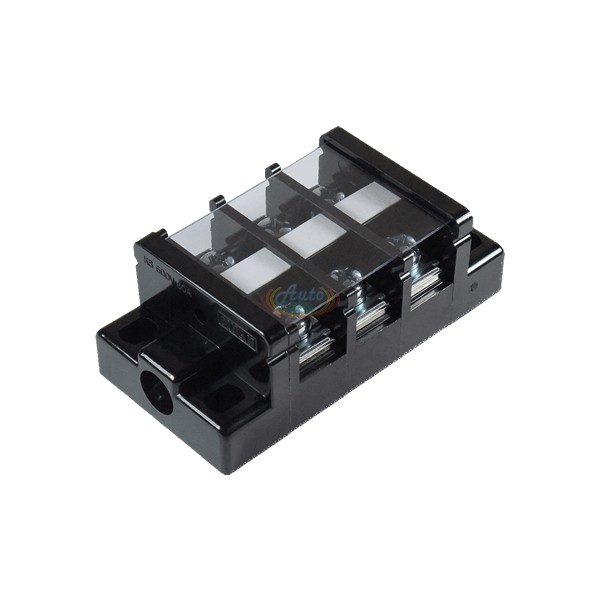

Phenolic Modular Terminal Blocks 60A
| Specification | |
|---|---|
| Item NO. | CB3-60A |
| Body Material | Phenolic |
| Rating | 60A, 600V |
| Screw | Steel M6 |
| Poles | Depending on customer needs |
| Pitch | 18.1mm |
| Dimensions | |
| Dimensions Description | A=18.1*P+40 |
| B=18.1*P+25 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 76.2 | 94.3 | 112.4 | 130.5 | 148.6 | 166.7 | 184.8 | 202.9 | 221.0 |
| B | 61.2 | 79.3 | 97.4 | 115.5 | 133.6 | 151.7 | 169.8 | 187.9 | 206.0 |
