Modular Terminal Blocks

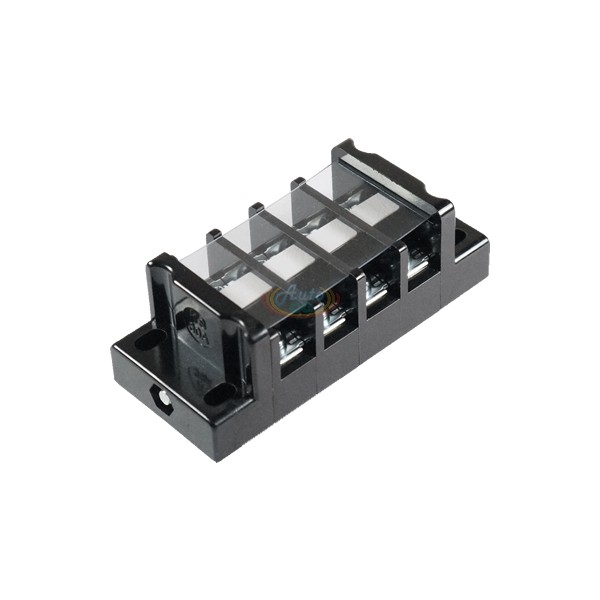

Phenolic Modular Terminal Blocks 30A
| Specification | |
|---|---|
| Item NO. | CB3-30A |
| Body Material | Phenolic |
| Rating | 30A, 600V |
| Screw | Steel M4 |
| Poles | Depending on customer needs |
| Pitch | 12.6mm |
| Dimensions | |
| Dimensions Description | A=12.6*P+19.1 |
| B=12.6*P+33.2 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 44.3 | 56.9 | 69.5 | 82.1 | 94.7 | 107.3 | 119.9 | 132.5 | 145.1 |
| B | 58.4 | 71.0 | 83.6 | 96.2 | 108.8 | 212.4 | 134.0 | 164.6 | 177.2 |
