Modular Terminal Blocks

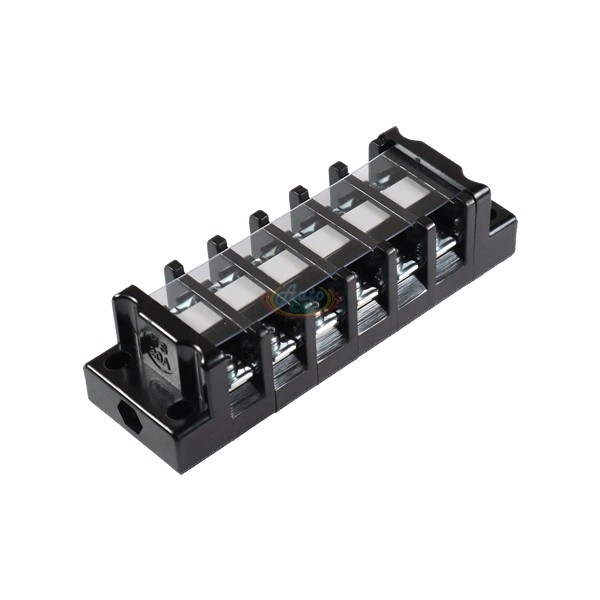

Phenolic Modular Terminal Blocks 20A
| Specification | |
|---|---|
| Item NO. | CB3-20A |
| Body Material | Phenolic |
| Rating | 20A, 600V |
| Screw | Steel M4 |
| Poles | Depending on customer needs |
| Pitch | 11.3mm |
| Dimensions | |
| Dimensions Description | A=11.3*P+17 |
| B=11.3*P+28.2 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 39.6 | 50.9 | 62.2 | 73.5 | 84.8 | 96.1 | 107.4 | 118.7 | 130.0 |
| B | 50.8 | 62.1 | 73.4 | 84.7 | 96.0 | 107.3 | 118.6 | 129.9 | 141.2 |
