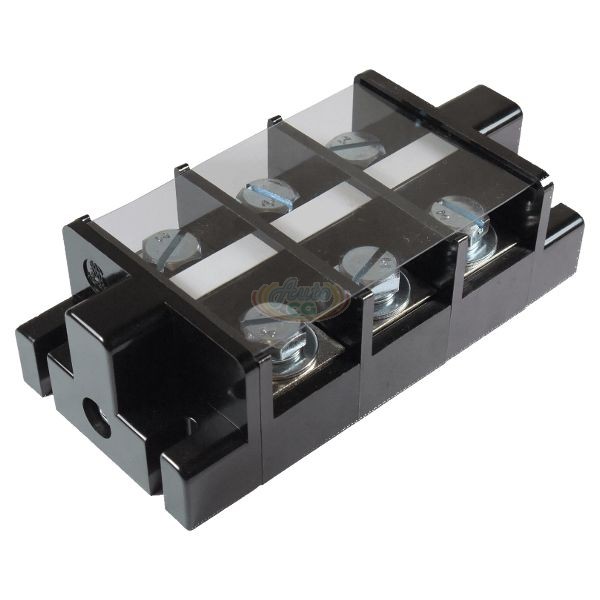

Phenolic Modular Terminal Blocks 200A
| Specification | |
|---|---|
| Item NO. | CB3-200A |
| Body Material | Phenolic |
| Rating | 200A, 600V |
| Screw | Steel M10 |
| Poles | Depending on customer needs |
| Pitch | 36mm |
| Dimensions | |
| Dimensions Description | A=36*P+29.4 |
| B=36*P+51.0 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 101.4 | 137.4 | 173.4 | 209.4 | 245.4 | 281.4 | 317.4 | 353.4 | 389.4 |
| B | 123.0 | 159.0 | 195.0 | 231.0 | 267.0 | 303.0 | 339.0 | 375.0 | 411.0 |
