Modular Terminal Blocks

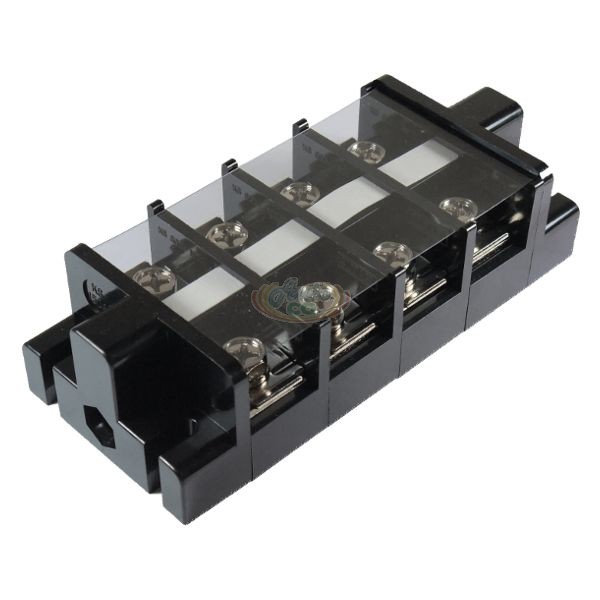

Phenolic Modular Terminal Blocks 150A
| Specification | |
|---|---|
| Item NO. | CB3-150A |
| Body Material | Phenolic |
| Rating | 150A, 600V |
| Screw | Steel M8 |
| Poles | Depending on customer needs |
| Pitch | 28.3mm |
| Dimensions | |
| Dimensions Description | A=28.3*P+22 |
| B=28.3*P+46.2 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 78.6 | 106.9 | 135.2 | 163.5 | 191.8 | 220.1 | 248.4 | 276.7 | 305.0 |
| B | 102.8 | 131.1 | 159.4 | 187.7 | 216.0 | 244.3 | 272.6 | 300.9 | 329.2 |
