Modular Terminal Blocks

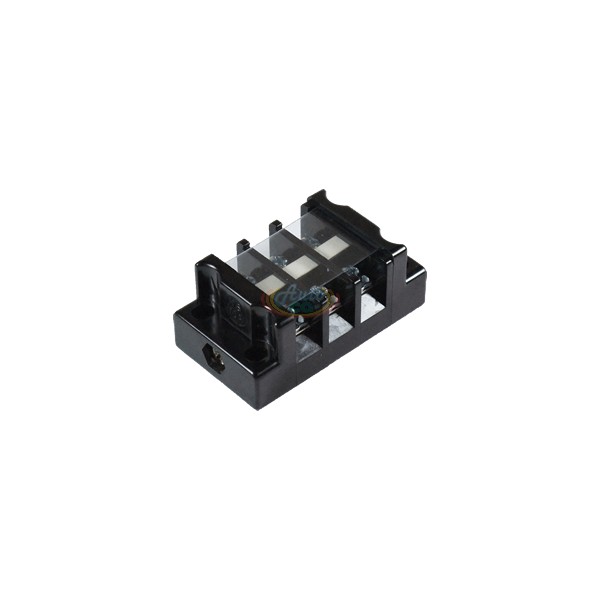

Phenolic Modular Terminal Blocks 10A
| Specification | |
|---|---|
| Item NO. | CB3-10A |
| Body Material | Phenolic |
| Rating | 10A, 600V |
| Screw | Steel M3.5 |
| Poles | Depending on customer needs |
| Pitch | 10mm |
| Dimensions | |
| Dimensions Description | A=10*P+14.6 |
| B=10*P+24.2 | |
| P: Poles | |
 |
|
| P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|
| A | 34.6 | 44.6 | 54.6 | 64.6 | 74.6 | 84.6 | 94.6 | 104.6 | 114.6 |
| B | 44.2 | 54.2 | 64.2 | 74.2 | 84.2 | 94.2 | 104.2 | 114.2 | 124.2 |
