Modular Terminal Blocks
Modular Terminal Blocks 10A Modular Terminal Blocks 20A Modular Terminal Blocks 30A Modular Terminal Blocks 60A Modular Terminal Blocks 100A Modular Terminal Blocks 150A Modular Terminal Blocks 200A Modular Terminal Blocks 300A Modular Terminal Blocks 400A Modular Terminal Blocks 10A+30A Modular Terminal Blocks 20A

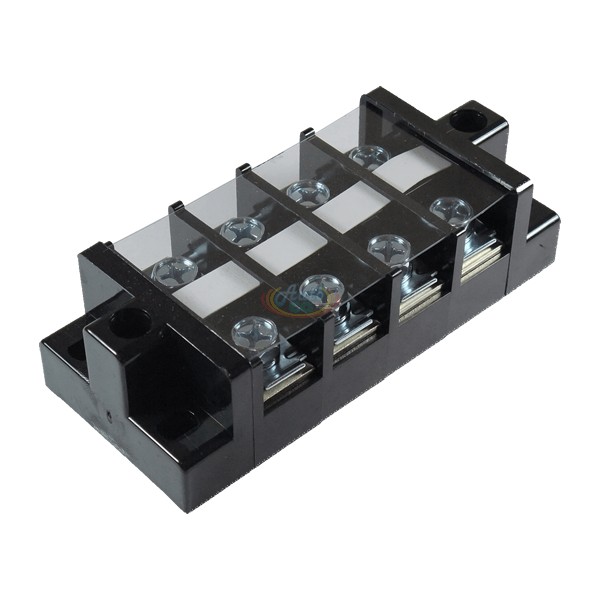

Phenolic Modular Terminal Blocks 100A
Specification
Item NO. CB3-100A
Body Material Phenolic
Rating 100A, 600V
Screw Steel M8
Poles Depending on customer needs
Pitch 23.2mm
Dimensions
Dimensions Description A=23.2*P+25
B=23.2*P+40.4
P: Poles
P 2 3 4 5 6 7 8 9 10
A 74.0 97.2 120.4 143.6 166.8 190.0 213.2 236.4 259.6
B 90.9 113.2 136.4 159.6 182.2 206.0 229.2 252.4 275.6
